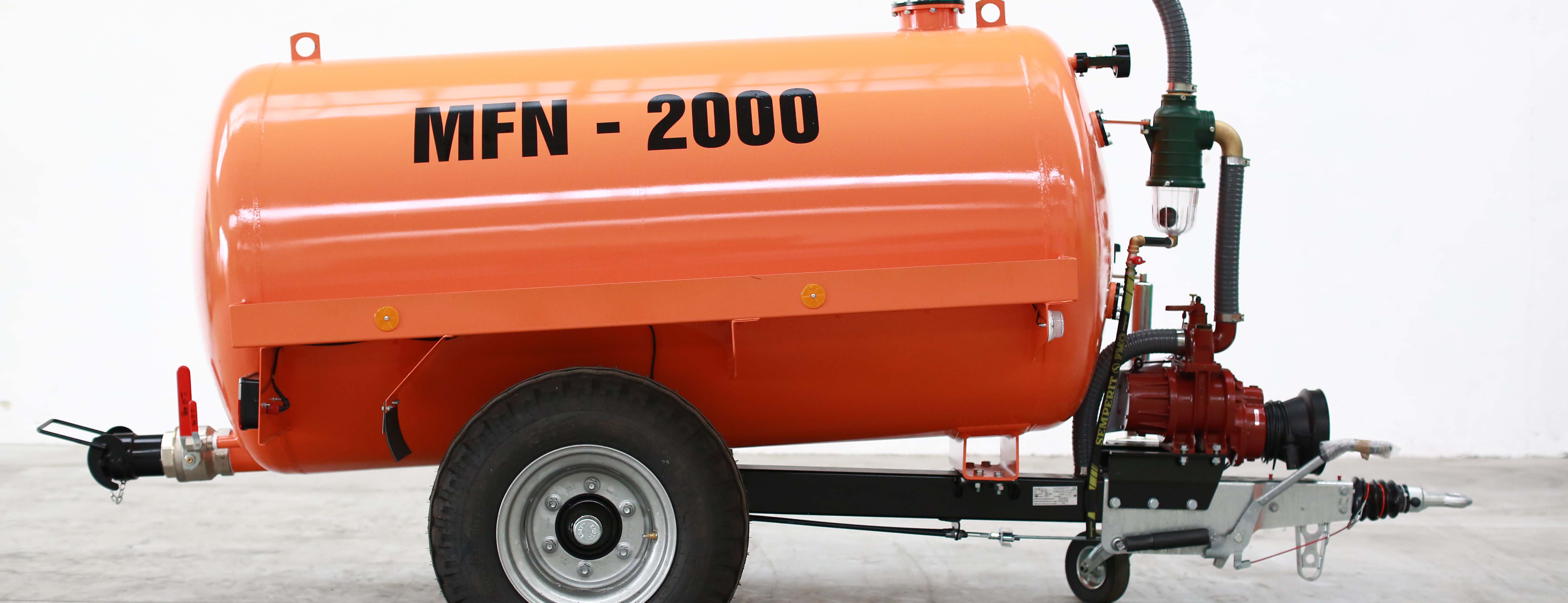

MFN-2000 Sewage Trailer


This trailer is a new type of a mobile cesspoolage tank with its payload of 1200 kg. It is designed particularly for filling, transport and application of liquid manure, fecal solids, sewages and similar agricultural wastes. It can be used also for water irrigation of fields, gardens, vineyards etc. The trailer chassis is a frameless body with one unsprung axle. Its tank is equipped with a suction pump with automatic lubrication powered by a cardan shaft of a small tractor. The actual level in the tank can be visually monitored through level gauges in the front and rear tank faces. Suction process of the pump is limited by a ball valve and secured by a safety valve. Its operating pressure is preset so that the tank cannot be held for a pressure vessel. The trailer is provided with an overrun brake system with automatic blockage at reverse running and a hand-operated mechanical parking brake. The tank rear closing gate valve can be mechanically controlled by the tractor driver.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

MFN- motorový pohon MFN-2000
Price without VAT 10,311.64 EUR 8,661.78 EUR
Price with VAT 12,477.09 EUR 10,480.75 EUR
Tank capacity 2100 l 2100 l
Max. length of trailer 3309 mm 3 309 mm
Max. width of trailer 1472 mm 1 472 mm
Weight 3500 kg 3 500 kg
Height of drawbar eye 530 mm 530 mm
Towing device min ot/min min ot/min
Tires 10x75x15,3 10x75x15,3
Sewage suction pump XE1P benzinový motor kohler CH 270 540 ot/min
Plastic suction hose *100 mm *100 mm
Operating brakes overrun drum brake overrun drum brake
Parking brake mechanical mechanical
Max. height of trailer 1818 mm 1 818 mm

DIMENSIONS

DIMENSIONS

Accessories

Type Name Price without VAT Price with VAT Photo
MFN-2000b savice 3000 mm 316.22 EUR 382.63 EUR
MFN-2000a savice 2500 mm 297.89 EUR 360.45 EUR
MFN2000 Hydraulické zavírání 458.30 EUR 554.54 EUR
BKH-316 PTO Shaft 316 187.90 EUR 227.36 EUR
