ZDV-521 Pallet Stacking Device

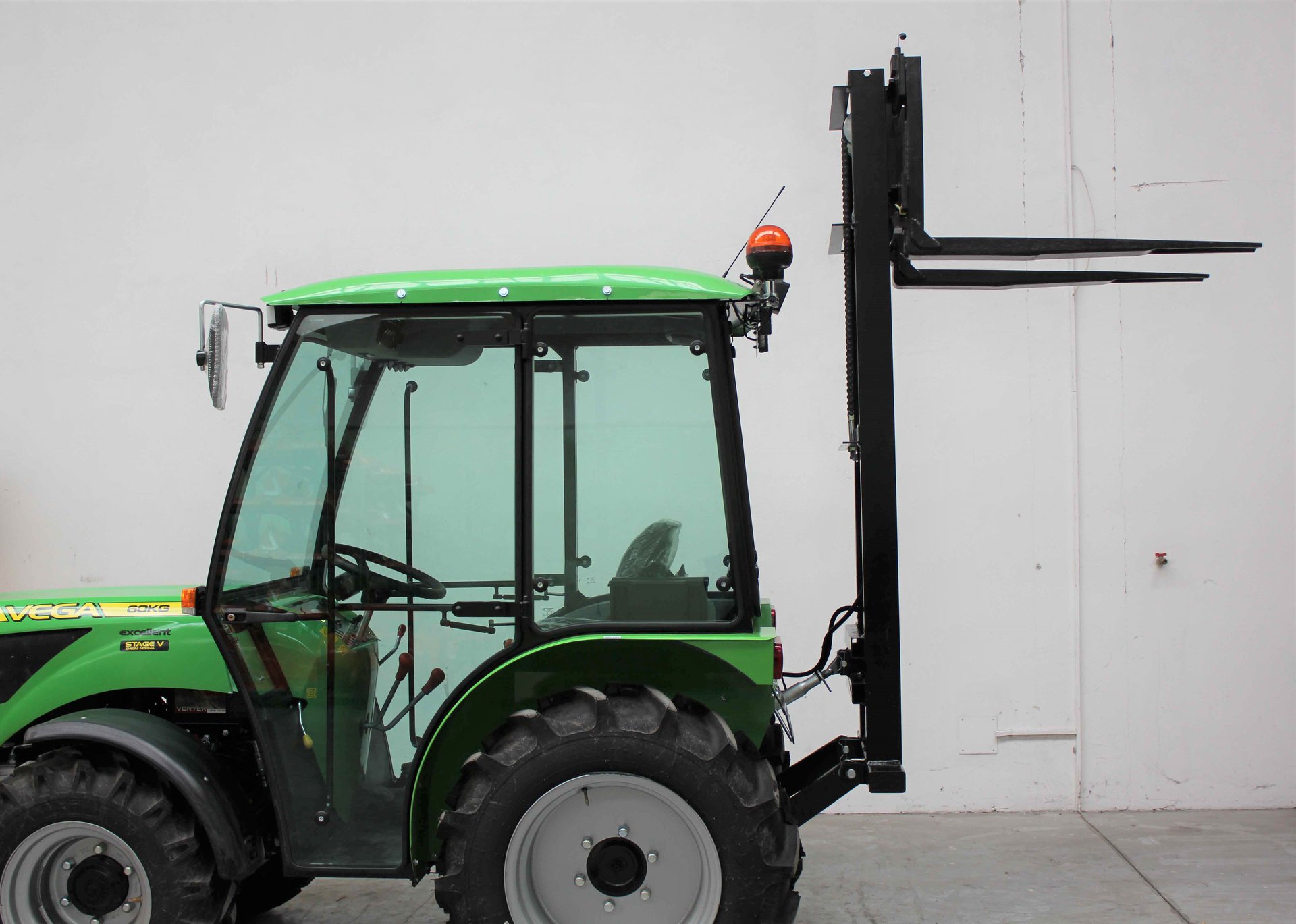

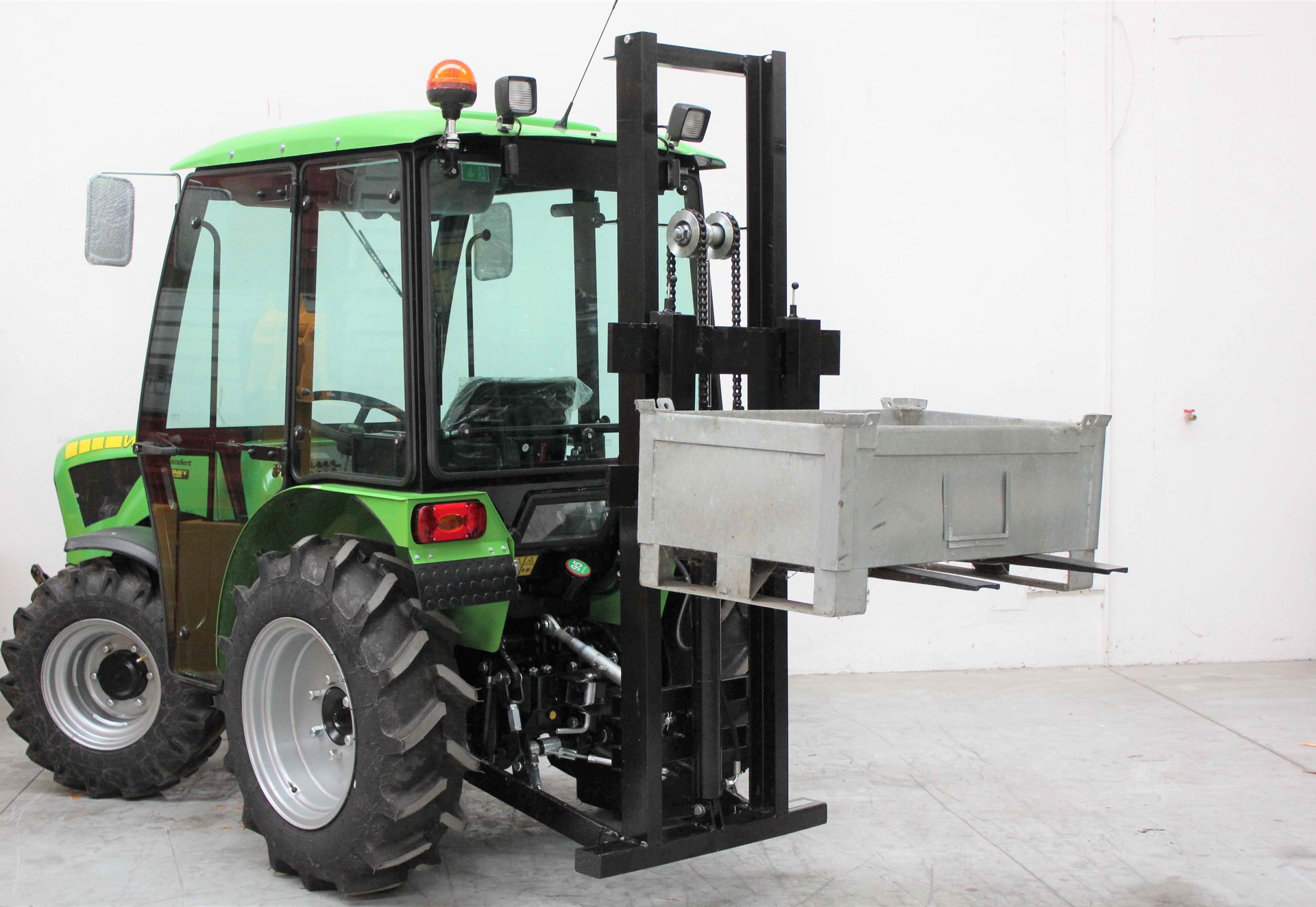

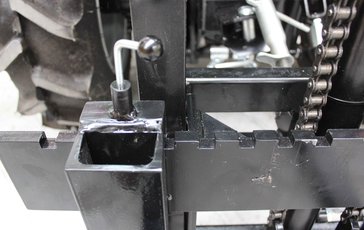

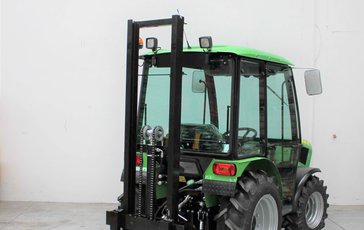

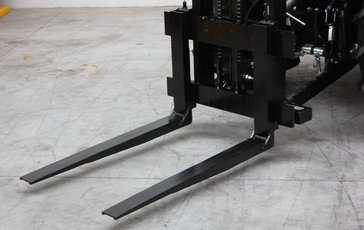

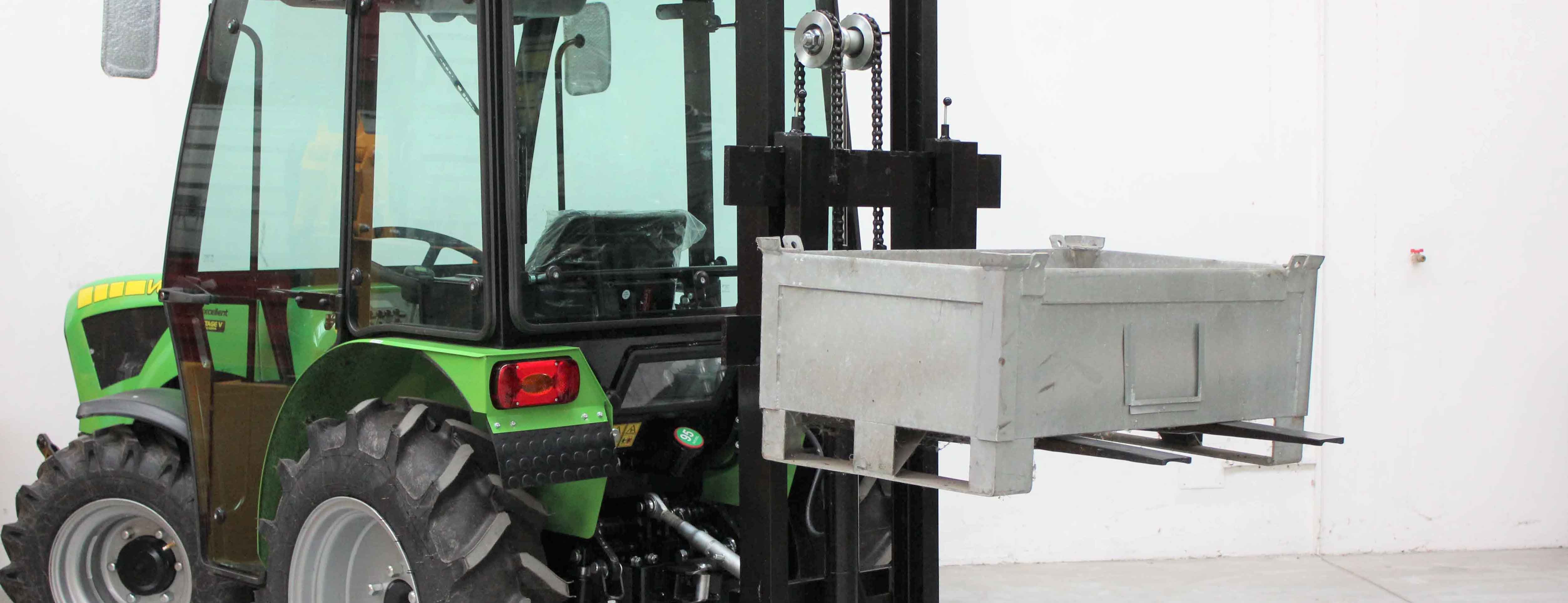

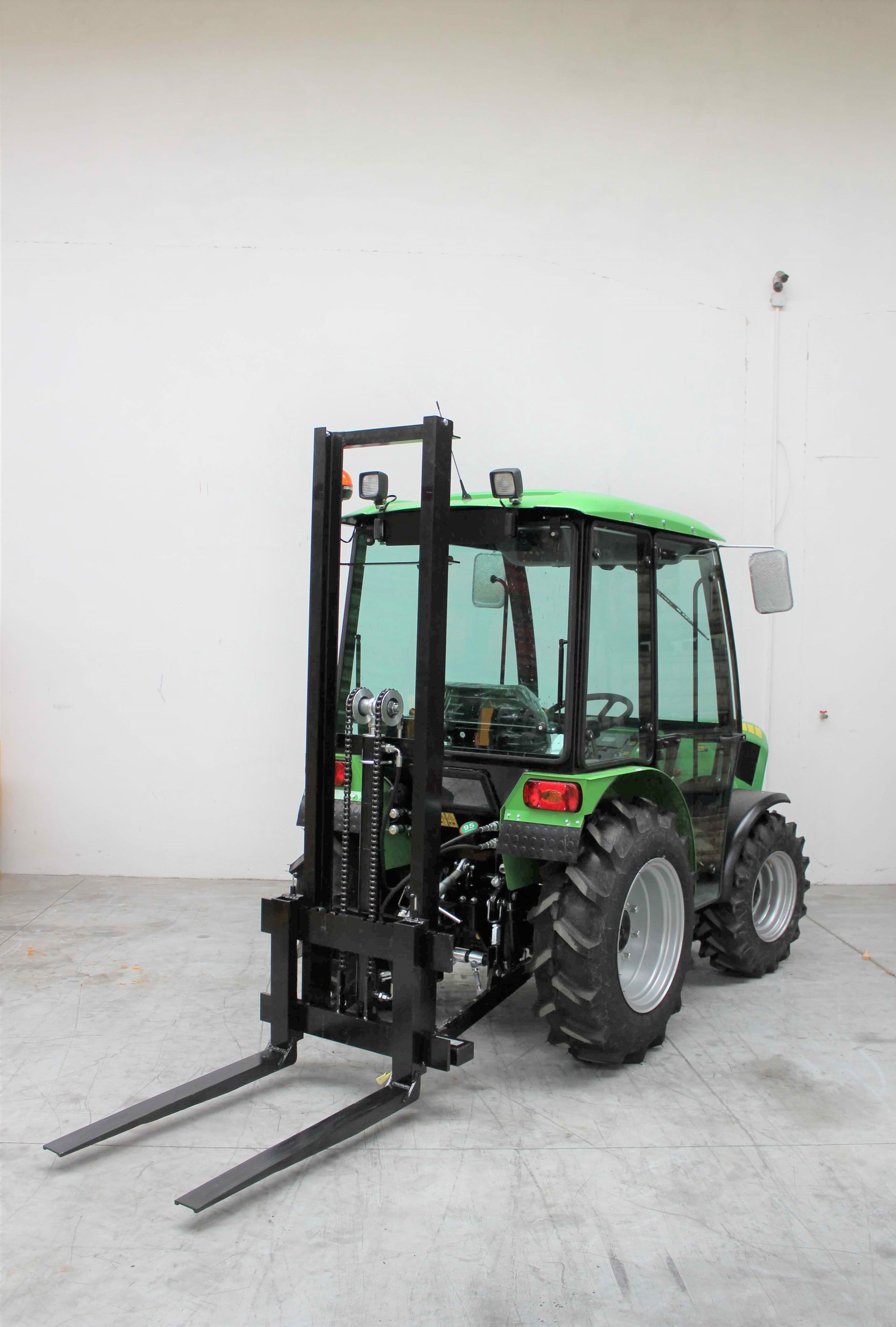

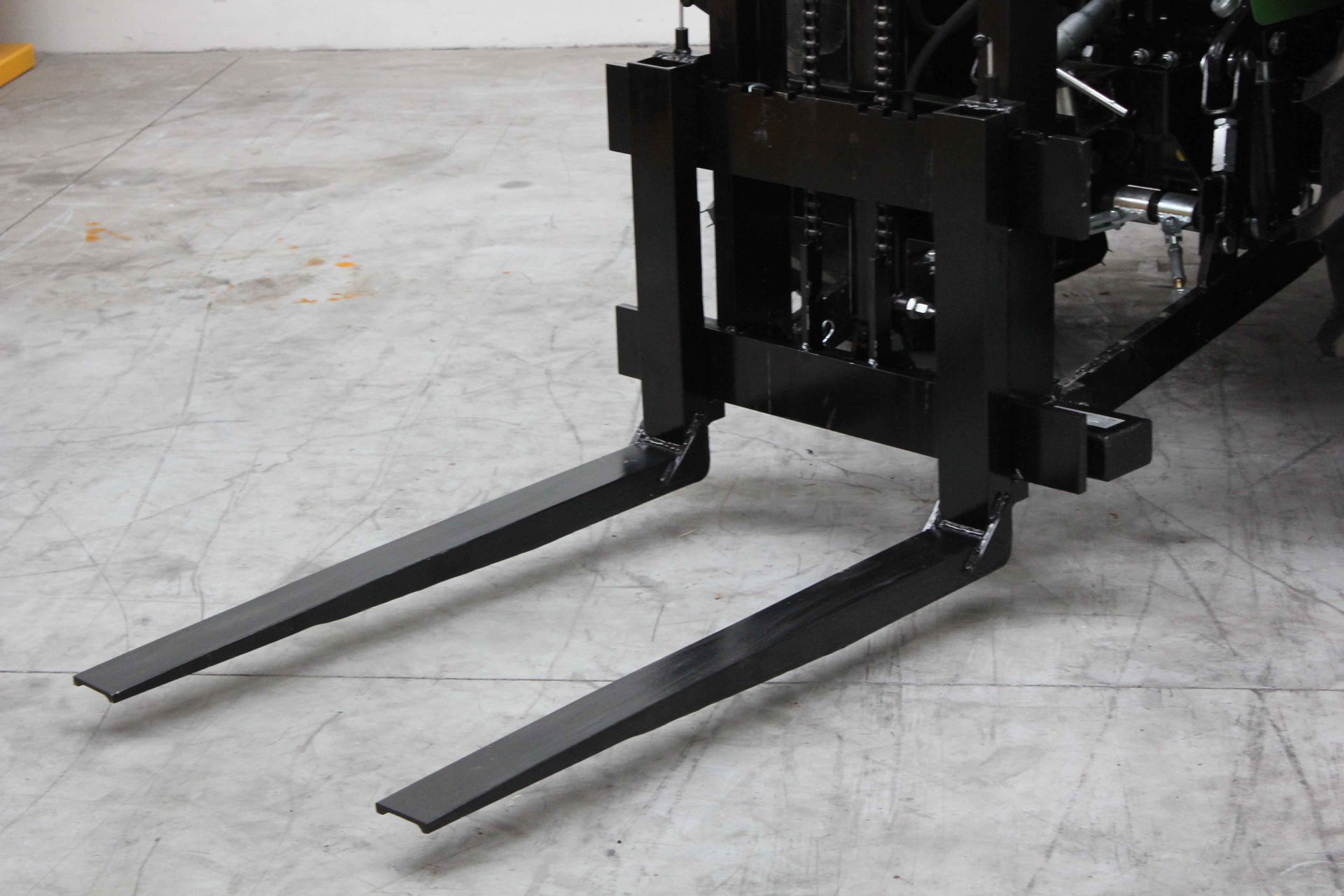

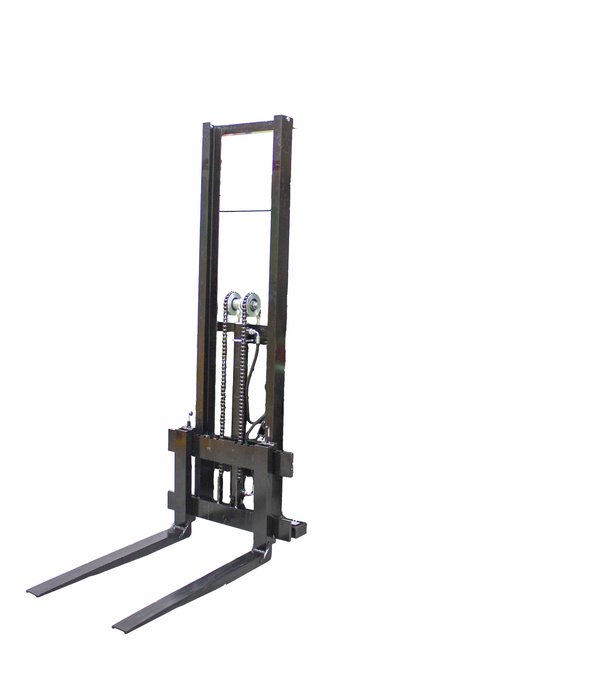

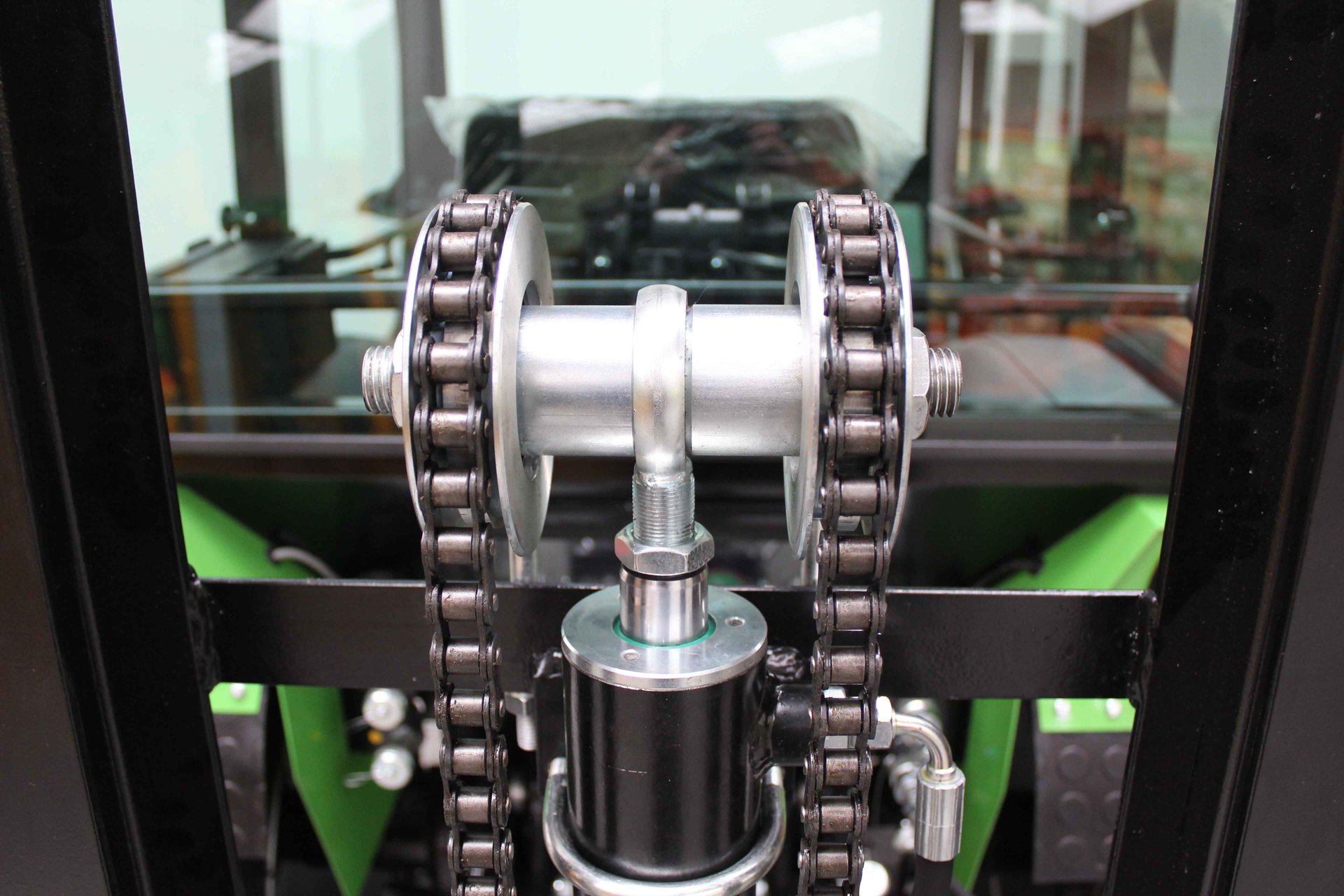

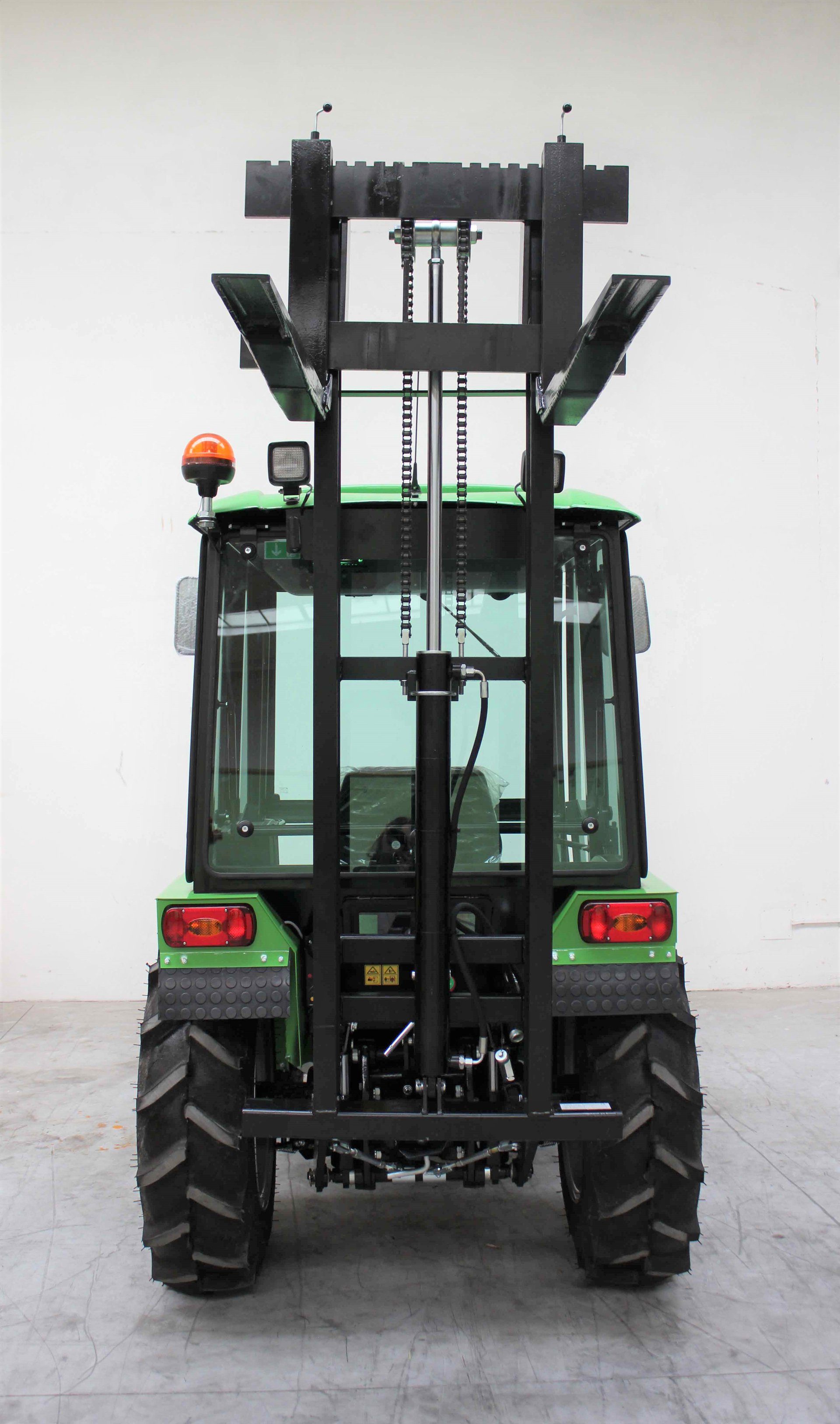

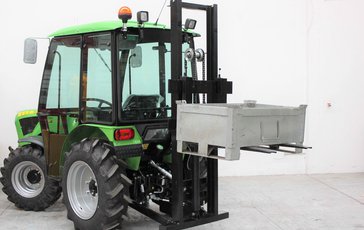

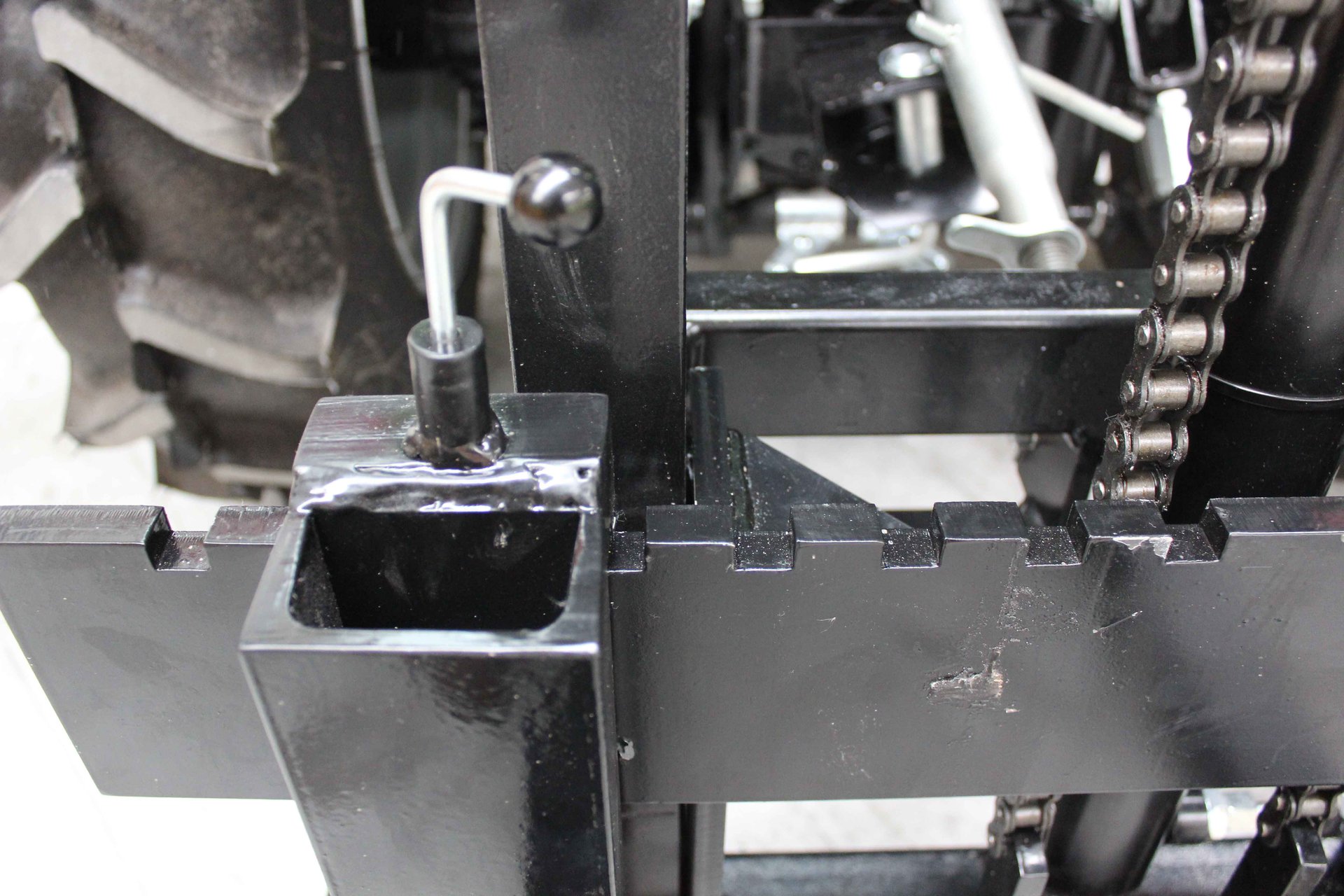

The pallet stacking device ZDV-521 (stacker) is designed especially for pallets handling, fork lifting and transport of loads and pallets used especially in agriculture, gardening, vegetable farms, building industry and in-house transport. This stacker can be suspended in the arms of the tractor rear three-point hitch. The own lifting is carried out by a hydraulic cylinder connected with the tractor hydraulics through a quick-coupler and controlled directly from the driver‘s cab. Required fork spacing can be set mechanically according to actual load. This stacker can be coupled with all types of compact tractors equipped with a steered axle and the three-point hitch ISO 730/1N. This stacking device is not designed for articulated tractors.


Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

ZDV-521
Price without VAT 2,108.16 EUR
Price with VAT 2,550.87 EUR
Length 1 230 mm
Width 1 250 mm
Height 2 200 mm
Maximum working height 2 000 mm
Max. loading capacity 350 kg
Weight of the lifting device 200 kg
Maximum lifting spacing fork 800 mm
Max. travel speed with load 6 km/h
Max. slope inclination

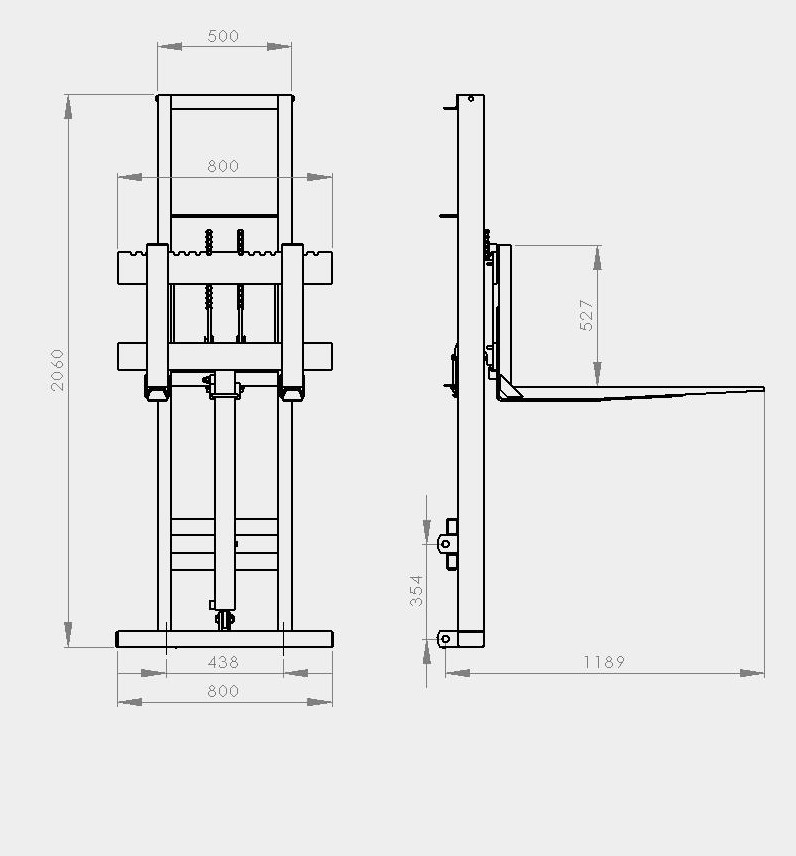

DIMENSIONS

DIMENSIONS
