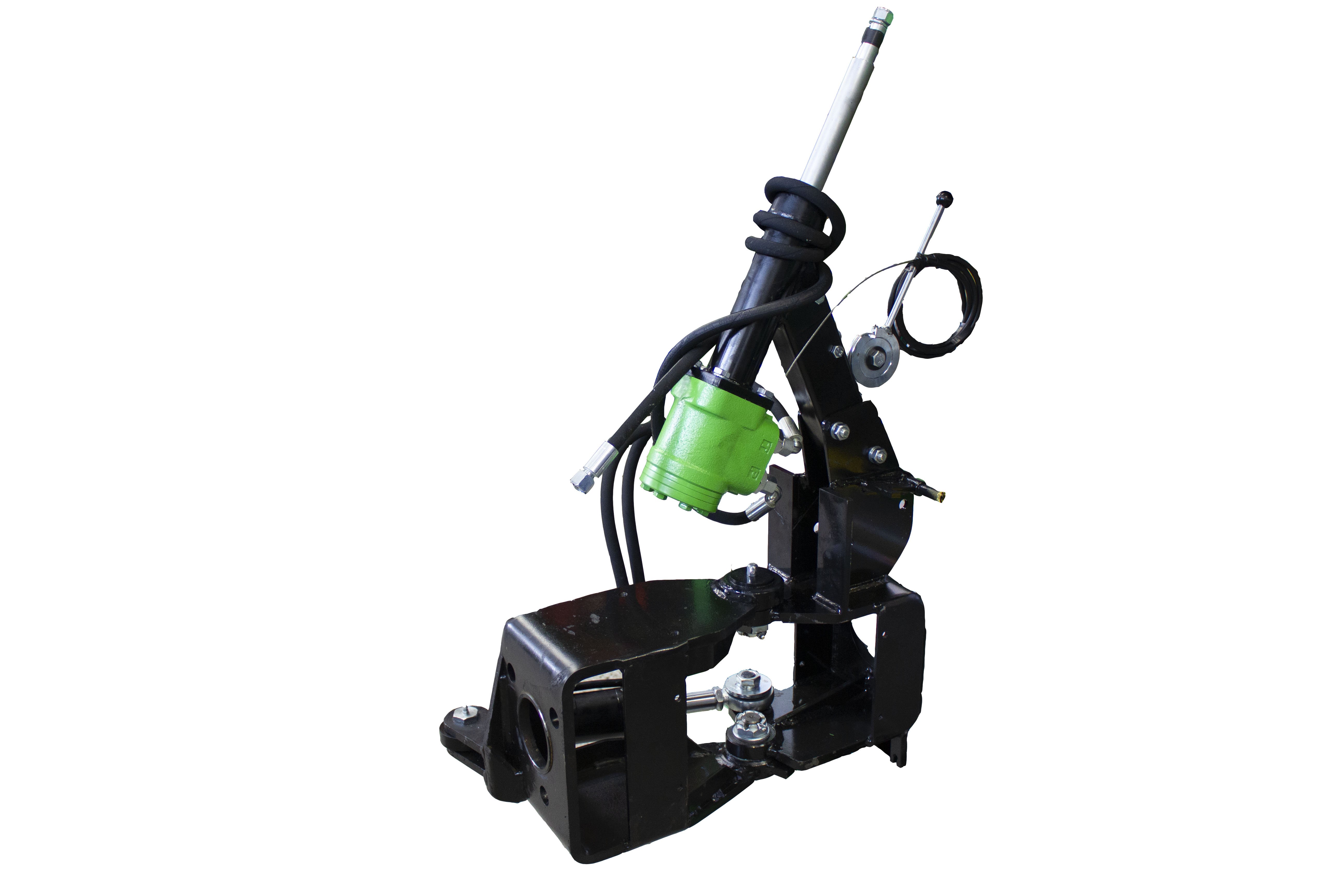

Hydraulic One-Piston Steering

A hydraulic steering (HDŘ-001 booster) was developed to reduce the control force. The steering drive is provided by a hydraulic pump, which is located on the engine. The pressurized hydraulic oil flows from the hydraulic pump to the control unit and further to the hydraulic distributor and back to the tank. In the event of a motor or hydraulic pump failure, the control unit provides emergency control as the control force increases. The control can be installed in compact tractors series TK-10-12, TZ4K-14, MT8-132.2 and MT8-132.32.

Used oil                                                             HV-46
Working pressure                                            60 bar
Working steering range                                  45 °
Diameter of working hydraulic cylinder      50 mmm
Stroke of working hydraulic cylinder           100 mm
Control unit                                                      DANFOS
